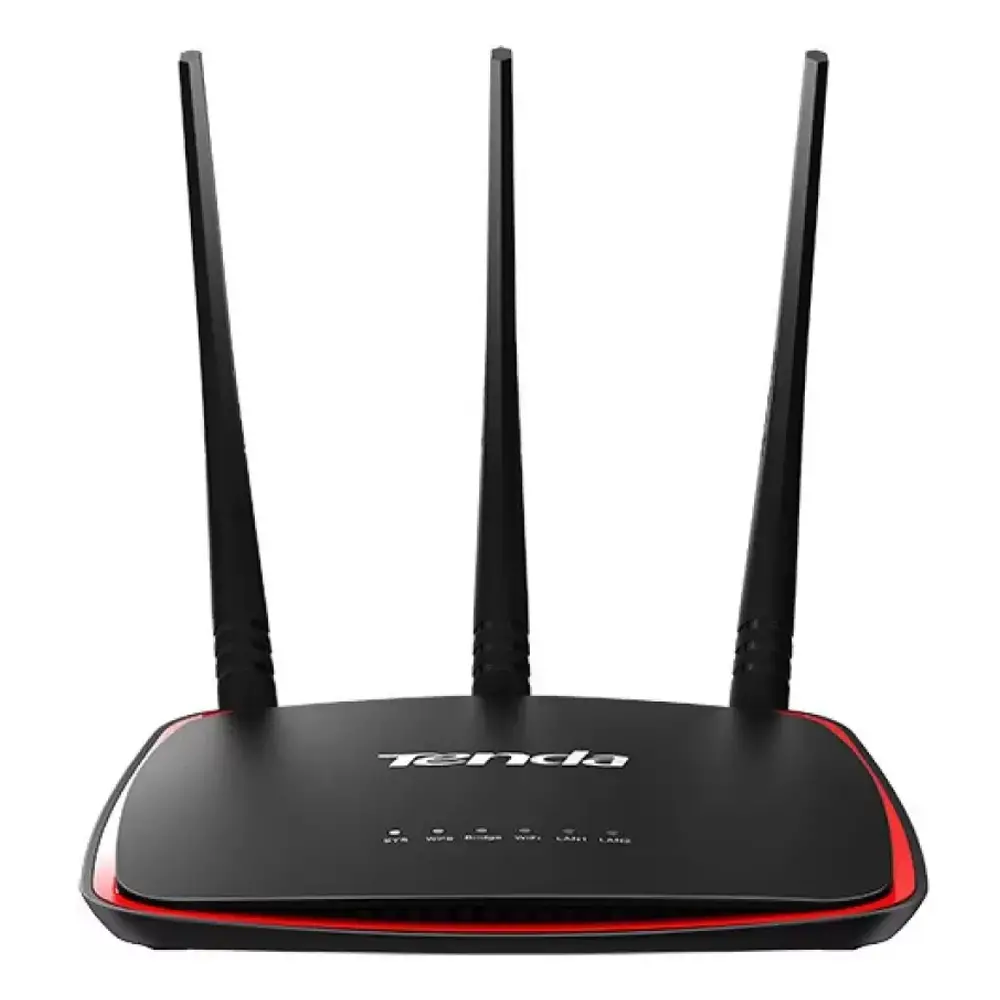

The Tenda AP5 v2 router has 300mbps WiFi, 2 100mbps ETH-ports and 0 USB-ports.
AP5 v2 router specifications (specs)
CPU: 650 MHz
RAM: 32 MiB
Custom firmwares: None
WiFi: 300mbps (bgn)
WiFi bands: 2.4GHz
WiFi throughput: n/a
ETH: 2 x 100mbps ports
Hard reset instructions for Tenda AP5 v2
If your AP5 v2 router is not working as it should, dropping connections or not
responsive, you should first do a reset of the router to see if the problems persist. Other
scenarios where you might want to reset your router is if you've forgotten the password or
misconfigured it and can't get access anymore.
Your can reset your Tenda AP5 v2 in the following way(s):
Through the web interface
- Open your web browser and go to routers web interface (check default settings below)
- Sign in with your username/password or check default settings below
- Once logged in to the interface locate System tools and click it
- Under System tools locate Restore to factory and click it
- On the resulting page click the Restore button, click Ok if prompted
- Wait for the reboot progress to finalize
With the reset button
- Have the power plugged in and powered on
- Locate the Reset/WPS button on your router
- With a sharp object (e.g. paperclip) press and hold the button for 7 seconds
- When the SYS light stops blinking, release the reset button.
The 30-30-30 resetIf the above instructions don't work you can always try the 30-30-30 reset as follows:
- When router is powered on, press the reset button and hold for 30 seconds. (Use a paper clip or something sharp)
- While holding the reset button pressed, unplug the power of the router and hold the reset button for 30 seconds
- While still holding the reset button down, turn on the power to the unit again and hold for another 30 seconds.
This process usually works for resetting any router to it's factory setting.
Note: It is worth reading more about how to reset routers with the 30 30 30 reset and what the risks and considerations are when resetting your router this way, instead of just rebooting it.
Default factory settings for Tenda AP5 v2
If you have performed a reset of your AP5 v2 device or not changed the defaults, you should be able to access it with the following settings:
Default username: admin Tenda router default password list
Default password: admin
Default subnet mask: 255.255.255.0
Default DNS server: 192.168.0.254
Note: If you are using the default settings you should change them to increase security and prevent unathorized access to your network.
How to login to the AP5 v2
To login to the AP5 v2 router and change the settings, you can follow these steps:
- Make sure you are connected to the router's network, either by Wi-Fi or ethernet cable.
- Open your browser and visit http://192.168.0.254
- You should be prompted with a login dialogue.
Enter the username:
adminand the password
Note: If you have already changed the password use that instead.
- You will now be logged in. If you haven't yet changed the defaul password, we recommend that you change it first thing you do after logging in.
If these instructions don't work for your router, you can always try a factory reset to get the default, or try some other common Tenda credentials, as they can usually be shared across models/variants.
