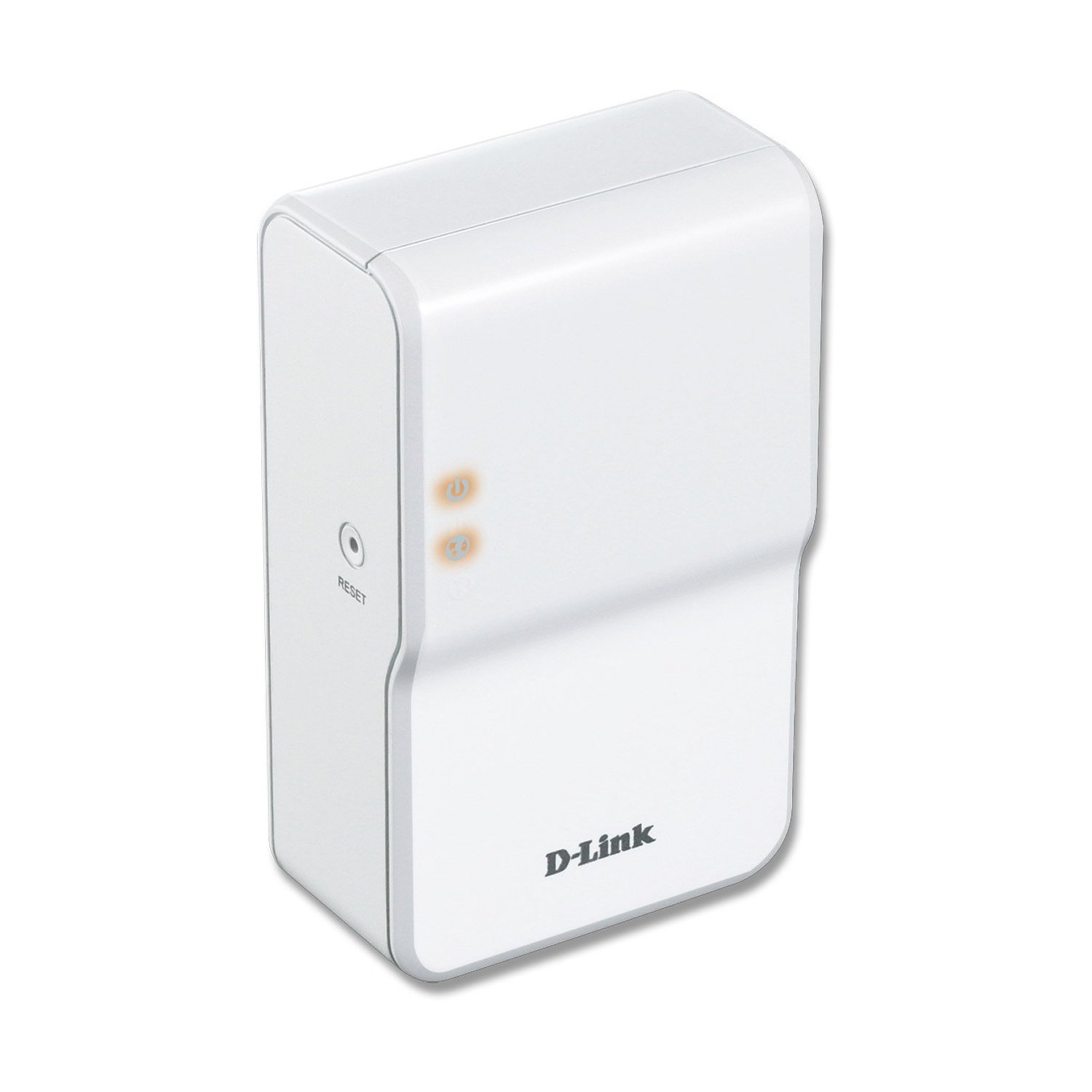

DIR-513 rev A2
The D-Link DIR-513 rev A2 router has 300mbps WiFi, 100mbps ETH-ports and 0 USB-ports.
DIR-513 rev A2 router specifications (specs)
RAM: 16 MiB
Custom firmwares: None
WiFi: 300mbps (bgn)
WiFi bands: 2.4GHz
WiFi throughput: n/a
WAN: 1 x 100mbps port
Hard reset instructions for D-Link DIR-513 rev A2
If your DIR-513 rev A2 router is not working as it should, dropping connections or not
responsive, you should first do a reset of the router to see if the problems persist. Other
scenarios where you might want to reset your router is if you've forgotten the password or
misconfigured it and can't get access anymore.
Your can reset your D-Link DIR-513 rev A2 in the following way(s):
With the reset button
- Locate the reset button on the back off the router
- While the unit is powered on, press the reset button with a sharp object (e.g. paperclip)
- Hold the button pressed for 10 seconds, then release.
- The unit will reboot by itself and once the WLAN light stops blinking the factory reset is done.
- You can now setup your router again through the user interface
The 30-30-30 resetIf the above instructions don't work you can always try the 30-30-30 reset as follows:
- When router is powered on, press the reset button and hold for 30 seconds. (Use a paper clip or something sharp)
- While holding the reset button pressed, unplug the power of the router and hold the reset button for 30 seconds
- While still holding the reset button down, turn on the power to the unit again and hold for another 30 seconds.
This process usually works for resetting any router to it's factory setting.
Note: It is worth reading more about how to reset routers with the 30 30 30 reset and what the risks and considerations are when resetting your router this way, instead of just rebooting it.
Default factory settings for D-Link DIR-513 rev A2
If you have performed a reset of your DIR-513 rev A2 device or not changed the defaults, you should be able to access it with the following settings:
Default username: Admin D-Link router default password list
Default subnet mask: 255.255.255.0
Default DNS server: 192.168.0.1
Note: If you are using the default settings you should change them to increase security and prevent unathorized access to your network.
How to login to the DIR-513 rev A2
To login to the DIR-513 rev A2 router and change the settings, you can follow these steps:
- Make sure you are connected to the router's network, either by Wi-Fi or ethernet cable.
- Open your browser and visit http://192.168.0.1
- You should be prompted with a login dialogue.
Enter the username:
Adminand if it requires a password, leave it empty or try with
Note: If you have already changed the password use that instead.
- You will now be logged in. If you haven't yet changed the defaul password, we recommend that you change it first thing you do after logging in.
If these instructions don't work for your router, you can always try a factory reset to get the default, or try some other common D-Link credentials, as they can usually be shared across models/variants.
