DIR-X1560 rev A1

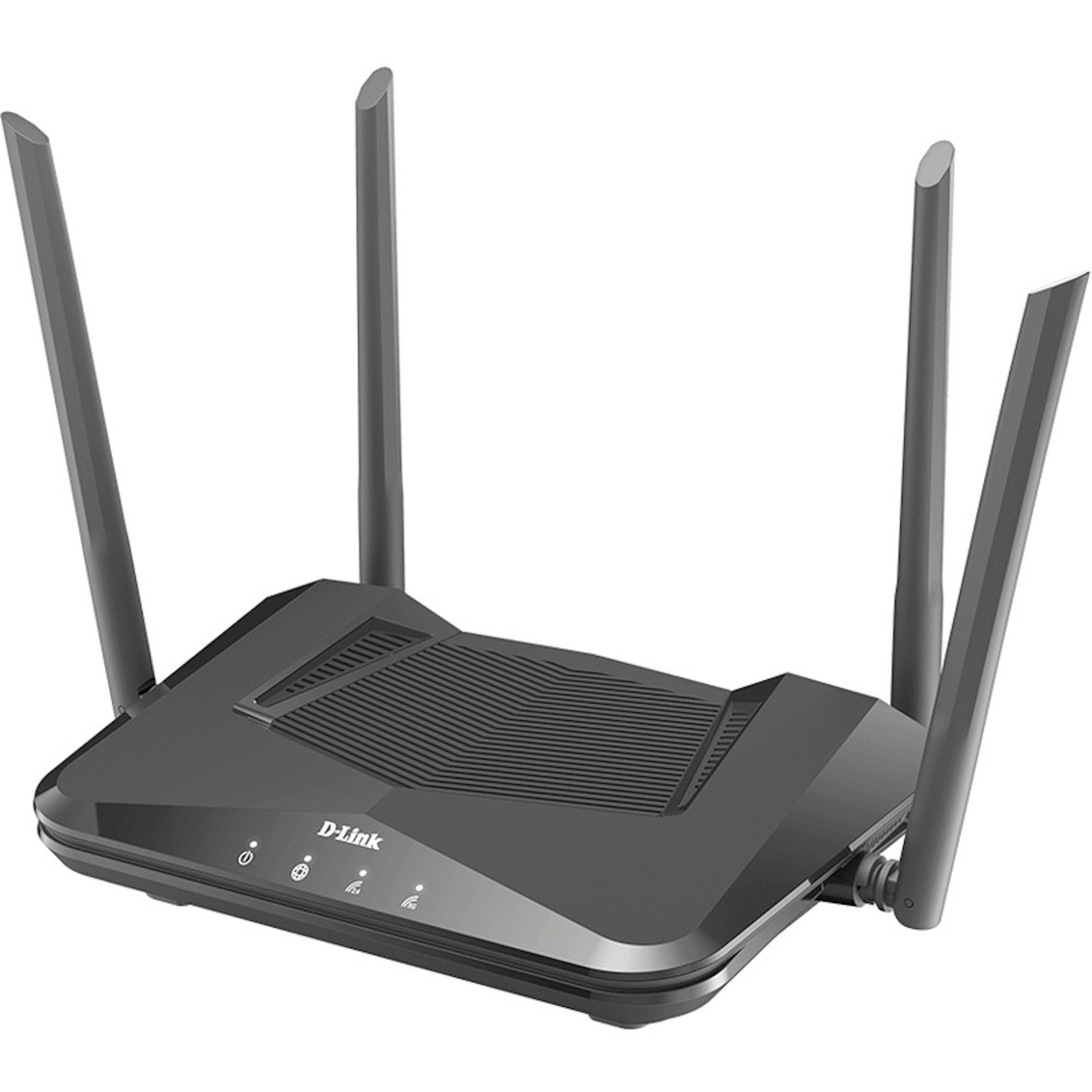

The D-Link DIR-X1560 rev A1 router has Gigabit WiFi, 4 N/A ETH-ports and 0 USB-ports.

The DIR-X1560 rev A1 is featured in our
Best Mid- to high-end routers: buying guide

Quick links:
Default password/Login


DIR-X1560 rev A1 router specifications (specs)

System specs
CPU: 1.5 GHz
RAM: 256 MiB
Flash: 128 MiB
Custom firmwares: None
Connectivity
WiFi: Gigabit (abgn+ac+ax)
WiFi bands: n/a
WiFi throughput: n/a
WAN: 1 x N/A port
ETH: 4 x N/A ports
USB-ports: 0

D-Link DIR-X1560 review (quick overview)

Here is the quick comparison of how the D-Link DIR-X1560 compares to other routers on our site:

Average 74/100
Editor 74/100
WiFi 100/100
Hardware 50/100
Current price Find best price

For a full list of routers and how they compare to the DIR-X1560 rev A1, check the Router Buying Guide which will help you buy the most price-competitive router.

Hard reset instructions for D-Link DIR-X1560 rev A1

If your DIR-X1560 rev A1 router is not working as it should, dropping connections or not being responsive, you should first do a reset of the router to see if the problems persist. Other scenarios where you might want to reset your router is if you've forgotten the password or misconfigured it and can't get access anymore.
Your can reset your D-Link DIR-X1560 rev A1 in the following way(s):

With the reset button

  1. Locate the reset button on the back off the router
  2. While the unit is powered on, press the reset button with a sharp object (e.g. paperclip)
  3. Hold the button pressed for 10 seconds, then release.
  4. The unit will reboot by itself and once the WLAN light stops blinking the factory reset is done.
  5. You can now setup your router again through the user interface

The 30-30-30 reset

If the above instructions don't work you can always try the 30-30-30 reset as follows:
  1. When router is powered on, press the reset button and hold for 30 seconds. (Use a paper clip or something sharp)
  2. While holding the reset button pressed, unplug the power of the router and hold the reset button for 30 seconds
  3. While still holding the reset button down, turn on the power to the unit again and hold for another 30 seconds.

This process usually works for resetting any router to it's factory setting. If that doesn't work be sure to check out the questions and answers incase someone else has had similar problems resetting their router.

Note: It is worth reading more about how to reset routers with the 30 30 30 reset and what the risks and considerations are when resetting your router this way, instead of just rebooting it.


Default factory settings for D-Link DIR-X1560 rev A1

If you have performed a reset of your DIR-X1560 rev A1 device or not changed the defaults, you should be able to access it with the following settings:

Default subnet mask: 255.255.255.0

Note: If you are using the default settings you should change them to increase security and prevent unathorized access to your network.
