LV-AC05

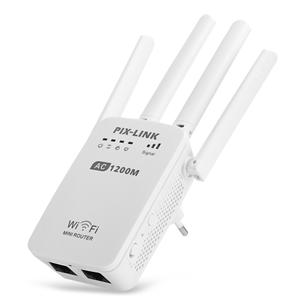

The PIX-LINK LV-AC05 router has Gigabit WiFi, 1 100mbps ETH-ports and 0 USB-ports. It has a total combined WiFi throughput of 1200 Mpbs.

Quick links:
Default password/Login
User Manuals


LV-AC05 router specifications (specs)

System specs
CPU: n/a
RAM: 64 MiB
Flash: 8 MiB
Custom firmwares: None
Connectivity
WiFi: Gigabit (abgn+ac)
WiFi bands: 2.4GHz & 5GHz
WiFi throughput: 1200 Mpbs
WAN: 1 x 100mbps port
ETH: 1 x 100mbps port
USB-ports: 0

PIX-LINK LV-AC05 review (quick overview)

Here is the quick comparison of how the PIX-LINK LV-AC05 compares to other routers on our site:

Average 32/100
Editor 70/100
WiFi 24/100
Hardware 4/100
Current price Find best price

For a full list of routers and how they compare to the LV-AC05, check the Router Buying Guide which will help you buy the most price-competitive router.

Hard reset instructions for PIX-LINK LV-AC05

If your LV-AC05 router is not working as it should, dropping connections or not being responsive, you should first do a reset of the router to see if the problems persist. Other scenarios where you might want to reset your router is if you've forgotten the password or misconfigured it and can't get access anymore.
Your can reset your PIX-LINK LV-AC05 in the following way(s):

The 30-30-30 reset

There are no specific instructions for this model yet, but you can always do the 30-30-30 reset as follows:
  1. When router is powered on, press the reset button and hold for 30 seconds. (Use a paper clip or something sharp)
  2. While holding the reset button pressed, unplug the power of the router and hold the reset button for 30 seconds
  3. While still holding the reset button down, turn on the power to the unit again and hold for another 30 seconds.

This process usually works for resetting any router to it's factory setting. If that doesn't work be sure to check out the questions and answers incase someone else has had similar problems resetting their router.

Note: It is worth reading more about how to reset routers with the 30 30 30 reset and what the risks and considerations are when resetting your router this way, instead of just rebooting it.


Default factory settings for PIX-LINK LV-AC05

If you have performed a reset of your LV-AC05 device or not changed the defaults, you should be able to access it with the following settings:

Default Network name (SSID): Wireless-AC_2G,Wireless-AC_5G
Default Gateway IP: 192.168.1.253 PIX-LINK login instructions
Default password: admin
Default subnet mask: 255.255.255.0
Default DNS server: 192.168.1.253
Note: If you are using the default settings you should change them to increase security and prevent unathorized access to your network.
