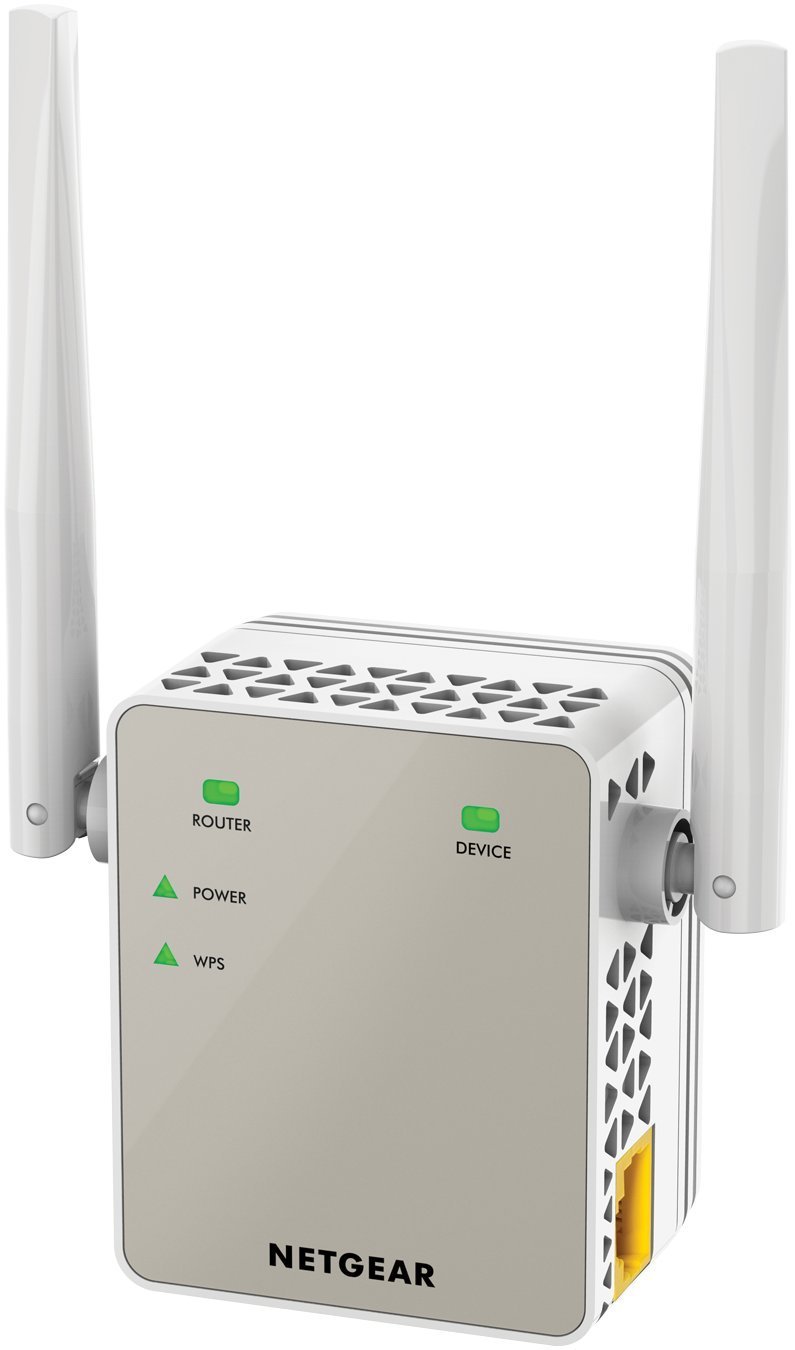

EX6120
AC1200 WiFi Range Extender

The Netgear EX6120 router has Gigabit WiFi, 1 100mbps ETH-ports and 0 USB-ports. It has a total combined WiFi throughput of 1200 Mpbs.
It is also known as the Netgear AC1200 WiFi Range Extender.

Quick links:
Default password/Login
User Manuals


EX6120 router specifications (specs)

System specs
CPU: 580 MHz
RAM: 64 MiB
Flash: 8 MiB
Custom firmwares: None
Connectivity
WiFi: Gigabit (abgn+ac)
WiFi bands: 2.4GHz & 5GHz
WiFi throughput: 1200 Mpbs
WAN: None
ETH: 1 x 100mbps port
USB-ports: 0

Netgear EX6120 review (quick overview)

Here is the quick comparison of how the Netgear EX6120 compares to other routers on our site:

Average 37/100
Editor 76/100
WiFi 24/100
Hardware 13/100
Current price $25.00

For a full list of routers and how they compare to the EX6120, check the Router Buying Guide which will help you buy the most price-competitive router.

Hard reset instructions for Netgear EX6120

If your EX6120 router is not working as it should, dropping connections or not being responsive, you should first do a reset of the router to see if the problems persist. Other scenarios where you might want to reset your router is if you've forgotten the password or misconfigured it and can't get access anymore.
Your can reset your Netgear EX6120 in the following way(s):

With the reset button

  1. Have the router powered on (if just booted wait around one minute for it to load)
  2. With a sharp pen or paper clip, press down the Restore Factory Settings button and hold it for about 7 seconds
  3. When the power light starts to blink you can release the reset button and wait for the router to start up
  4. The power light will be solid (not blinking) once the router is started.

The 30-30-30 reset

If the above instructions don't work you can always try the 30-30-30 reset as follows:
  1. When router is powered on, press the reset button and hold for 30 seconds. (Use a paper clip or something sharp)
  2. While holding the reset button pressed, unplug the power of the router and hold the reset button for 30 seconds
  3. While still holding the reset button down, turn on the power to the unit again and hold for another 30 seconds.

This process usually works for resetting any router to it's factory setting. If that doesn't work be sure to check out the questions and answers incase someone else has had similar problems resetting their router.

Note: It is worth reading more about how to reset routers with the 30 30 30 reset and what the risks and considerations are when resetting your router this way, instead of just rebooting it.


Default factory settings for Netgear EX6120

If you have performed a reset of your EX6120 device or not changed the defaults, you should be able to access it with the following settings:

Default subnet mask: 255.255.255.0

Note: If you are using the default settings you should change them to increase security and prevent unathorized access to your network.

EX6120 Firmwares

Staying up to date with the latest firmware is a good idea to keep your router even more secure from various security flaws.
If you want to squeeze a little bit of extra functionality out of your router, consider flashing an open-source firmware like dd-wrt, openWRT or LEDE. Flashing a custom ROM can greatly increase the stability and functionality of your old router.
Following are the firmwares that we have identified existing for the Netgear EX6120:

Netgear stock firmware for the EX6120

Stock firmwares for the EX6120 are available under the download section on the modem's support page. You can also refer to the router's manual for instructions on how to upgrade the firmware.
