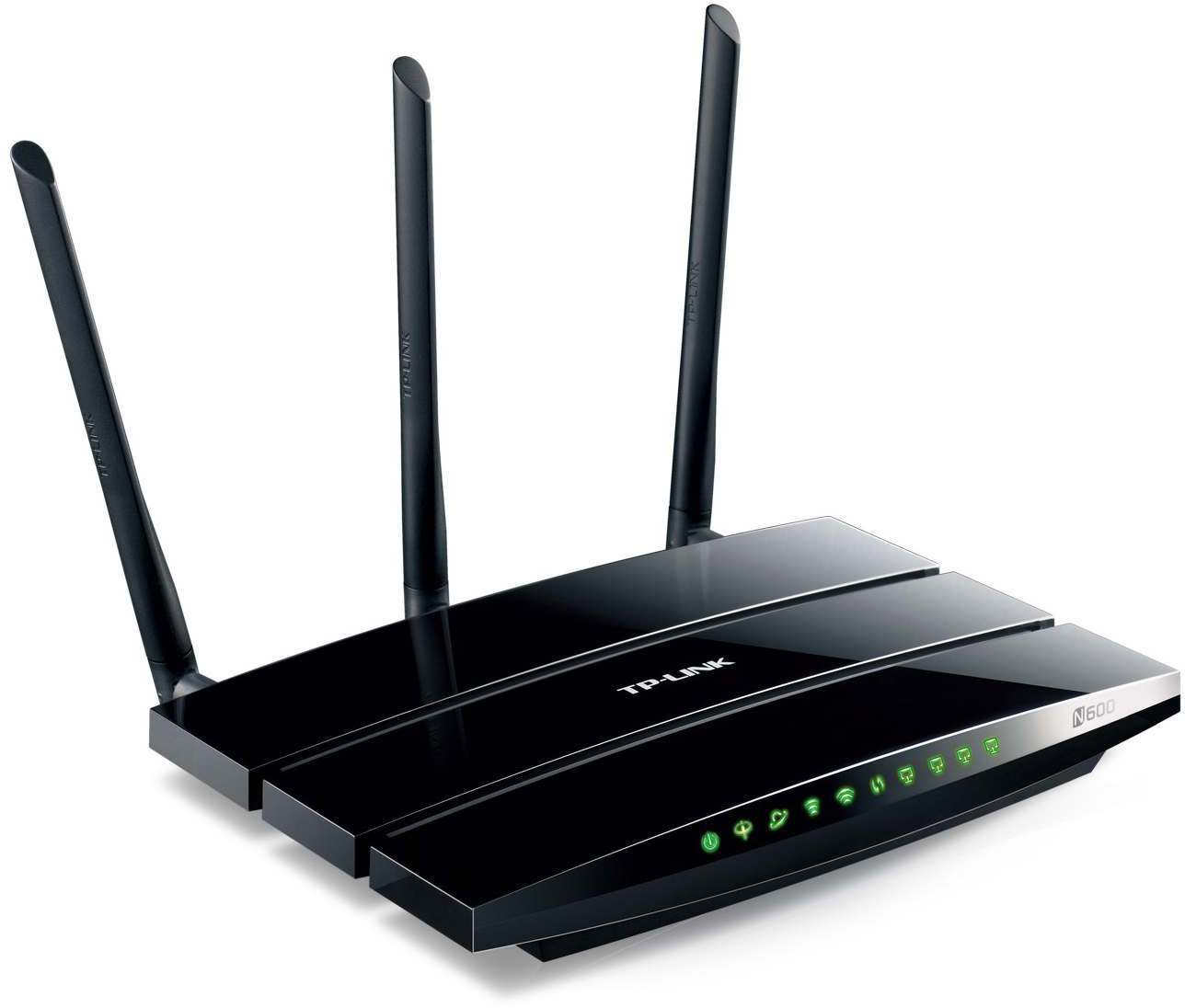

N600 Wireless Dual Band Gigabit VDSL2 Modem Router
The TP-LINK TD-W9980 v1.x router has 300mbps WiFi, 4 N/A ETH-ports and 0 USB-ports.
It is also known as the TP-LINK N600 Wireless Dual Band Gigabit VDSL2 Modem Router.
TD-W9980 v1.x router specifications (specs)
CPU: 500 MHz
RAM: 64 MiB
Flash: 8 MiB
Custom firmwares: None
WiFi: 300mbps (abgn)
WiFi bands: 2.4GHz & 5GHz
WiFi throughput: n/a
ETH: 4 x N/A ports
Hard reset instructions for TP-LINK TD-W9980 v1.x
If your TD-W9980 v1.x router is not working as it should, dropping connections or not
responsive, you should first do a reset of the router to see if the problems persist. Other
scenarios where you might want to reset your router is if you've forgotten the password or
misconfigured it and can't get access anymore.
Your can reset your TP-LINK TD-W9980 v1.x in the following way(s):
Through the web interface
- Open a browser and navigate to the web interface of the router (check default settings below)
- In the menu look for System tools and under there find the Factory defaults option
- On the Factory defaults page click on the Restore button to perform the reset.
Withe the RESET/WPS button
- Have the unit powered on
- Press and hold the reset (sometimes reset/WPS) button for 10 seconds with a paperclip or other sharp object.
- When the SYS led start blinking quickly release the reset button and wait for router to boot back up.
The 30-30-30 resetIf the above instructions don't work you can always try the 30-30-30 reset as follows:
- When router is powered on, press the reset button and hold for 30 seconds. (Use a paper clip or something sharp)
- While holding the reset button pressed, unplug the power of the router and hold the reset button for 30 seconds
- While still holding the reset button down, turn on the power to the unit again and hold for another 30 seconds.
This process usually works for resetting any router to it's factory setting.
Note: It is worth reading more about how to reset routers with the 30 30 30 reset and what the risks and considerations are when resetting your router this way, instead of just rebooting it.
Default factory settings for TP-LINK TD-W9980 v1.x
If you have performed a reset of your TD-W9980 v1.x device or not changed the defaults, you should be able to access it with the following settings:
Default password: admin
Default subnet mask: 255.255.255.0
Note: If you are using the default settings you should change them to increase security and prevent unathorized access to your network.
