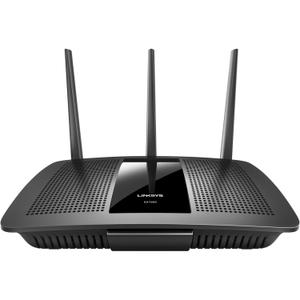

The Linksys EA7300 router has Gigabit WiFi, 4 N/A ETH-ports and 0 USB-ports. It has a total combined WiFi throughput of 1750 Mpbs.
It is also known as the Linksys Max-Stream AC1750 MU-MIMO Gigabit Wi-Fi Router.
Best Low-end routers: buying guide
EA7300 router specifications (specs)
CPU: 880MHz MHz
RAM: 256 MiB
Flash: 128 MiB
Custom firmwares: None
WiFi: Gigabit (abgn+ac)
WiFi bands: 2.4GHz & 5GHz
WiFi throughput: 1750 Mpbs
WAN: 1 x N/A port
ETH: 4 x N/A ports
Linksys EA7300 review (quick overview)
Here is the quick comparison of how the Linksys EA7300 compares to other routers on our site:
For a full list of routers and how they compare to the EA7300, check the Router Buying Guide which will help you buy the most price-competitive router.
Hard reset instructions for Linksys EA7300
If your EA7300 router is not working as it should, dropping connections or not
responsive, you should first do a reset of the router to see if the problems persist. Other
scenarios where you might want to reset your router is if you've forgotten the password or
misconfigured it and can't get access anymore.
Your can reset your Linksys EA7300 in the following way(s):
Through the web interface
- Open your browser and navigate to the router interface (check default settings below)
- Under the Administration tab you will find a sub-tab called Factory defaults
- On the Factory defaults page click the button labeled Restore Factory Defaults
With the reset button
- Have your unit powered on
- Press and hold the reset button for at least 10 seconds until the power light starts blinking, then release.
- When the power light goes solid, unplug the power to the router for 10 seconds
- Plug the power back in and start the router
- When the power light goes solid again the router is ready to use.
The 30-30-30 resetIf the above instructions don't work you can always try the 30-30-30 reset as follows:
- When router is powered on, press the reset button and hold for 30 seconds. (Use a paper clip or something sharp)
- While holding the reset button pressed, unplug the power of the router and hold the reset button for 30 seconds
- While still holding the reset button down, turn on the power to the unit again and hold for another 30 seconds.
This process usually works for resetting any router to it's factory setting.
If that doesn't work be sure to check out the
questions and answers
incase someone else has had similar problems resetting their router.
Note: It is worth reading more about how to reset routers with the 30 30 30 reset and what the risks and considerations are when resetting your router this way, instead of just rebooting it.
Default factory settings for Linksys EA7300
If you have performed a reset of your EA7300 device or not changed the defaults, you should be able to access it with the following settings:
Default Gateway IP: 192.168.1.1 Linksys login instructions
Default password: admin
Default subnet mask: 255.255.255.0
Default DNS server: 192.168.1.1
Note: If you are using the default settings you should change them to increase security and prevent unathorized access to your network.
Staying up to date with the latest firmware is a good idea to keep your router even more
from various security flaws.
If you want to squeeze a little bit of extra functionality out of your router, consider flashing an open-source firmware like dd-wrt, openWRT or LEDE. Flashing a custom ROM can greatly increase the stability and functionality of your old router.
Following are the firmwares that we have identified existing for the Linksys EA7300:
Linksys stock firmware for the EA7300
Stock firmwares for the EA7300 are available under the download section on the modem's support page. You can also refer to the router's manual for instructions on how to upgrade the firmware.
